Biogas - hu4

TERRA 21 ENERGY | production and storage of green energy

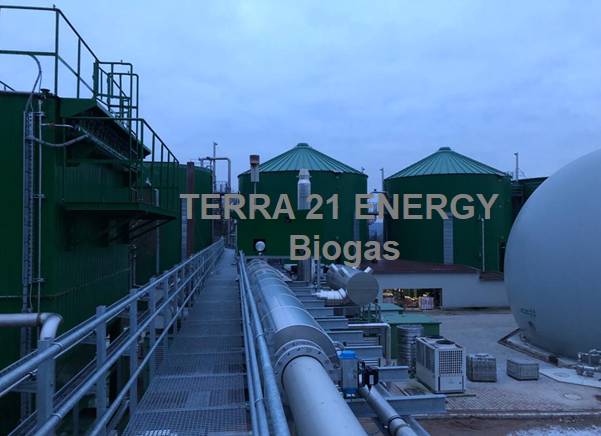

Biogas plant TERRA 21, with 5 MW in Hilter Osnabrück, Germany

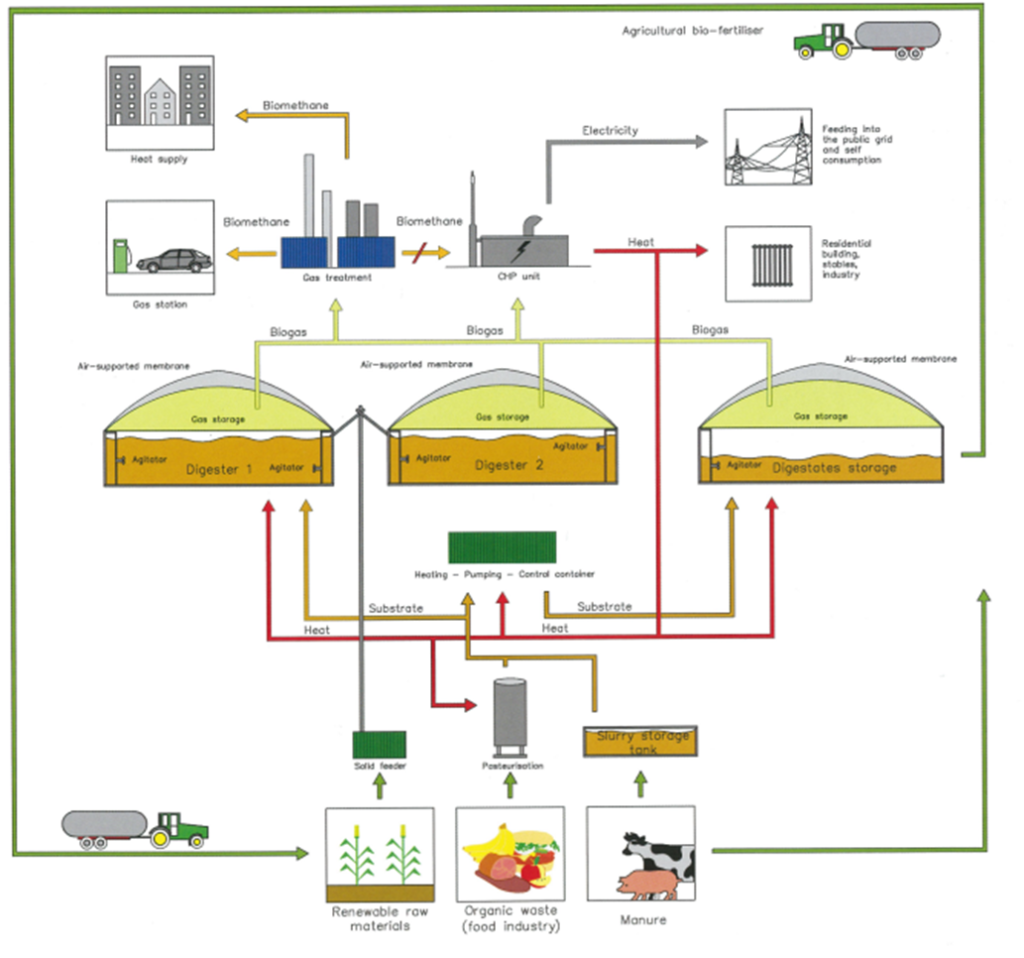

Biogas – production with waste materials and gas storage:

For electricity or natural gas production

   The bioreactors, digesters, have a total volume
              of approximately 27.200 m³
              Production =60.000 m³ Biogas / day

5.000 m³ gas storage + Drying system for high-quality biological fertilizer

In operation since 2012, 3 fermenters, waste materials as input, manure, straw, grain straw, biological waste.
Power and heat generation, biological fertilizer through fermentation residue drying

BIOGAS IS our GREEN ENERGY

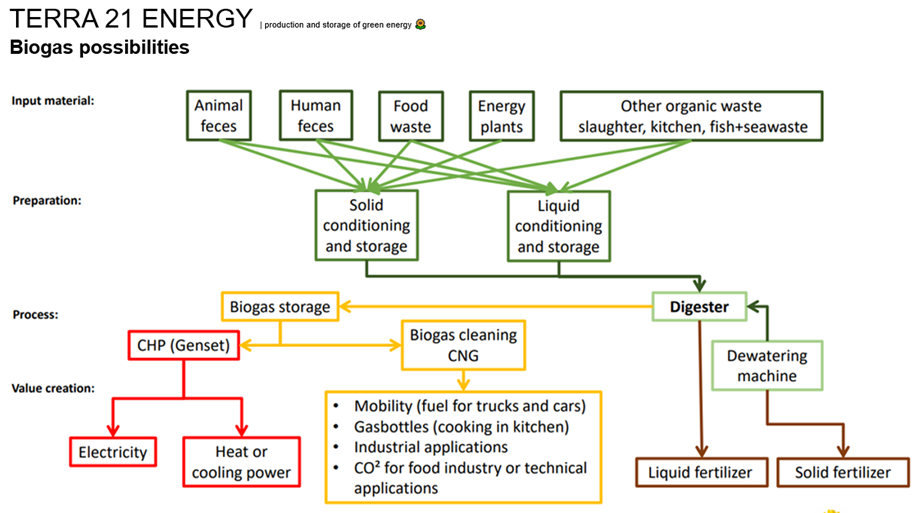

Use of biogas

Biogas is suitable as a contribution to an energy mix from renewable energies. This is because, on the one hand, it can be used as a base load, i.e., unlike other renewable energy sources such as wind or sun, the biogas is continuously available; on the other hand, biomass and biogas can be stored, which can contribute to the energy supply at peak times. This is why this bioenergy carrier is ideal for balancing out short-term fluctuations in the electricity supply from wind and solar energy. So far, most biogas plants have been
operated continuously, more or
less as a base load power plant.

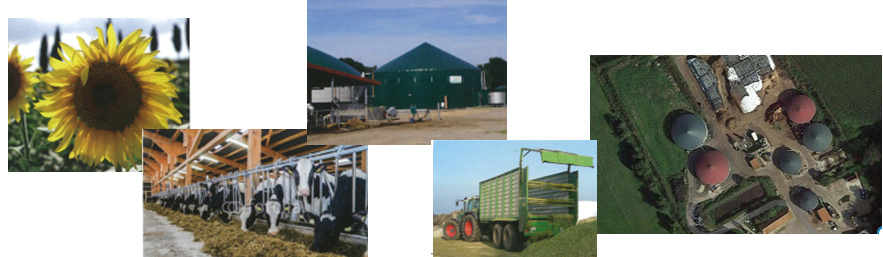

Starting materials are biogenic materials like the following:

fermentable, biomass-containing residues such as sewage sludge, biowaste or leftovers
Farm manure (liquid manure, manure)
Plants that have not previously been used and parts of plants (for example catch crops, plant remains and the like).
specifically cultivated energy crops (renewable raw materials)

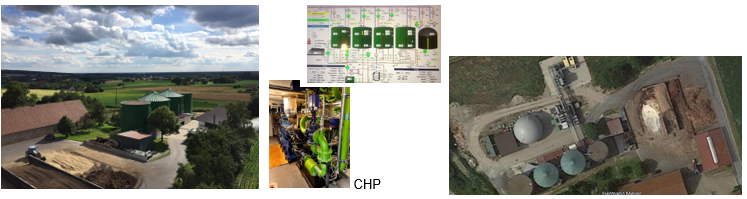

Biogas plant with 4,8 MW in Jever, Germany

In operation since 2010, 4 fermenters, renewable raw materials, mainly maize as input.
Power generation, heat generation, biological fertilizer through fermentation residue drying

Planning, construction + production of biogas plants by TERRA21ENERGY

hu4 | digital securities
für Investition in production and storage of green energy.
